Since I am lately doing contract work mostly from home I need to set up the environment just right. Sitting for 8-10 hours straight at a desk is unhealthy and a lot of my colleagues have motorized desks that go for 1700E (~2000USD) a pop.
I just bought an Ikea SKARSTA desk that’s raised and lowered via a manually actuated crank, old-school style. The price for the base was 170E (x1.13 for USD) plus another 30E for the base plate. The motorized version (BEKANT) retails for 500E which means by doing a conversion we can save around >300E - 340$ at the time of writing, likely to be more by the time you read this article.
The base plate is 120x70cm (47.24x27.44”) so I initially wanted to put a smaller plate on it – Linmon 100x60 cm which incidentally also retails for less than a quarter of the price.
Unfortunately the width of the table can only go higher, between 120-150cm, while the depth is fixed at 70cm. See the diagram below for a clearer picture:
The diagram shows the table upside-down, but there are two mounting holes on each leg that give it its fixed depth, while the central piece connecting the legs only adds to ~5cm. So in order to put a smaller tabletop some serious metalworking would be required: replace or modify the upper arms on each leg (they are not straight), shorten and drill the horizontal connecting rods of each leg. I don’t have the equipment for such a task.
The crank actuating the rising/lowering mechanism is driven by a standard 6mm hex key
So I’ve cut the included Allen/hex key into a straight piece using a Dremel to give me a longer actuating rod:
We need at least 2Nm for raising the table, a lot less for lowering it so I’ve thought what kind of actuator device would handle that torque. The only price-accessible devices would be battery-powered drills, of which I’ve got quite a few:
Here it’s a testing run with a Panasonic (semi-professional) screwdriver while the final part will be handled by this:
...a cheap drill that had it’s NiCd batteries fail after just one year. It takes 1.3A at full speed and no load and likes any voltage above 12V.
There are two ways of powering this project: small 12-14V supply (<1A) and a small buffer battery (1Ah) or a 17-20V/5A laptop power supply. I will post updates on this project as I'm going along.
Managed to procure another cordless drill motor, but this one had the issue of having a chuck that's 4cm in diameter while the table would only allow for a 3cm one.
The issue was solved by putting the entire mechanism at an angle and spacing it so that the chuck has a minimum clearance.
See below that the "axle" is slanted down and there is a "spacer" in the form of a zip-tie.
The driving nut inside the table has a bit of play to it and the drill head also has a bit of play, this means that the system is self-aligning, in a poor way.
The entire assembly was affixed with cardboard box ties (black ones) - they have a really high tensile strength and can glue nicely with cyanoacrylate (super-glue):
The contraption easily handles the rotational torque while allowing a bit of flex.
A cutout from a drive belt, positioned between the table and the drill, prevents the later one from slipping and turning.
After mechanical problem was sorted out it was time to see how to drive this little motor. It has a constant current draw under load of 3-4A but draws 7-10 Amperes on startup.
I've tried using laptop power supplies (12-15-19V) rated at 3-5A but they went immediately in protection mode. I've also used small (1-2Ah) UPS batteries as a buffer but they are not able to sustain the current requirements, requiring usage in short bursts.
So I welcome our new friend, the RC LiPo battery - in addition to being a constant helper in starting my scooter it also easily provides 40A. The battery pictured below is not fit for RC use - because it sustained multiple crashes and one complete discharge - but it does the job fine in other fields. Important to note that it's a 3S configuration (3x4.2V). A 4S would also work, even better.
I managed to scrounge a 3-pole switch from my junk box, rated at only 1A - so about 10 times less than what it needs to be. Everything is connected with 1.5mm^2 wires (AWG16), which should be fine, according to this chart:
http://www.wecoconnectors.com/data_source/fichiers/wire_size_specifications.pdf
Ever since The Ben Heck Show I've become a supported of hot glue and cardboard for prototyping and the current project is no exception.
The switch was insulated with hot glue, it was fixed to the table with hot glue while the wires were also held with that.
For all these "home improvement ideas" I like having a DIY look as opposed to a clean one.
Obviously this is a semi-temporary setup until I'm able to verify that everything is running fine in the long term.
I intended floating the cells at 12V, to keep them constantly charged, but as far as I've read LiPo chemistry does not like floating/trickle charge. Nevertheless, if you really intend doing this, a 12V (regulated!) 0.25A up to 1.5A supply would suffice. Smaller is safer.
I've raised and lowered the table several times and the battery voltage did not change much. I would expect that out of a charged 1.8Ah 3S LiPo I would get at least 40 actuations - one month of battery life.
1.8Ah would then mean 64 actuations, so 3 per day over the course of a month. Obviously this is highly simplified.
The switch will have to be replaced with a higher rated one - 20A to be on the safe side.
There should be an inline fuse on the wires coming from the battery - 20A.
The drill assembly needs to be affixed with a metal bracket.
The wires need to be routed in a nicer way so they are less conspicuous.
Under no circumstances should the battery be connected directly to the "circuit". In case of short circuit it should allow a fast way of disconnecting it, either by yanking the battery connector or the fuse out. It will also provide a way to nicely charge and balance the LiPo cells.
It makes a really loud noise, not sure exactly why. It either needs dampeners in the areas the drill connects to the table or a different motor.
Update: the engine was mounted to a bracket, surrounded by circular foam. This makes it a bit less louder.
A possible improvement would be a flexible coupling as used in 3D printers, available on dx.com:
Two short videos showing the operation and noise levels - measured at 62-65dB with an SPL meter:
The setup has been in use for almost a year and hasn't failed. I was afraid the switch I used (rated for 250mA) would weld because of the high currents but that hasn't happened.
For noise reduction I used a flexible coupling at first (from AliExpress) but it proved too weak for the torque. A 3D printed part in PLA was also too weak. The final solution was to use a flexible 1/4" coupling similar to this: http://www.amazon.com/Piece-Flexible-Extension-Bar-Set/dp/B01EVT36YM/ref=sr_1_3?ie=UTF8&qid=1469567513&sr=8-3&keywords=flexible+1+4+extension
The hex/allen extension that was cut was force-fitted into the flexible coupling mother end, the driver (father) end was just tightened into the drill chuck.
I have found an automotive-style window switch that should work fine for this application:
https://www.pollin.de/shop/dt/NjMzOTc1OTk-/Bauelemente_Bauteile/Mechanische_Bauelemente/Schalter_Taster/KFZ_Fensterhebertaster.html
Probably identical to this: http://www.amazon.com/uxcell%C2%AE-Vehicle-Plastic-Momentary-Window/dp/B00H8VK4KK
I just bought an Ikea SKARSTA desk that’s raised and lowered via a manually actuated crank, old-school style. The price for the base was 170E (x1.13 for USD) plus another 30E for the base plate. The motorized version (BEKANT) retails for 500E which means by doing a conversion we can save around >300E - 340$ at the time of writing, likely to be more by the time you read this article.
The base plate is 120x70cm (47.24x27.44”) so I initially wanted to put a smaller plate on it – Linmon 100x60 cm which incidentally also retails for less than a quarter of the price.
Unfortunately the width of the table can only go higher, between 120-150cm, while the depth is fixed at 70cm. See the diagram below for a clearer picture:
The diagram shows the table upside-down, but there are two mounting holes on each leg that give it its fixed depth, while the central piece connecting the legs only adds to ~5cm. So in order to put a smaller tabletop some serious metalworking would be required: replace or modify the upper arms on each leg (they are not straight), shorten and drill the horizontal connecting rods of each leg. I don’t have the equipment for such a task.
The crank actuating the rising/lowering mechanism is driven by a standard 6mm hex keySo I’ve cut the included Allen/hex key into a straight piece using a Dremel to give me a longer actuating rod:
We need at least 2Nm for raising the table, a lot less for lowering it so I’ve thought what kind of actuator device would handle that torque. The only price-accessible devices would be battery-powered drills, of which I’ve got quite a few:Here it’s a testing run with a Panasonic (semi-professional) screwdriver while the final part will be handled by this:
...a cheap drill that had it’s NiCd batteries fail after just one year. It takes 1.3A at full speed and no load and likes any voltage above 12V.
There are two ways of powering this project: small 12-14V supply (<1A) and a small buffer battery (1Ah) or a 17-20V/5A laptop power supply. I will post updates on this project as I'm going along.
Update
I had let go the cheap blue drill since it likely has a short in its windings. That's probably the reason why its batteries failed.
Mechanical setup
Managed to procure another cordless drill motor, but this one had the issue of having a chuck that's 4cm in diameter while the table would only allow for a 3cm one.The issue was solved by putting the entire mechanism at an angle and spacing it so that the chuck has a minimum clearance.
See below that the "axle" is slanted down and there is a "spacer" in the form of a zip-tie.
The driving nut inside the table has a bit of play to it and the drill head also has a bit of play, this means that the system is self-aligning, in a poor way.
The contraption easily handles the rotational torque while allowing a bit of flex.A cutout from a drive belt, positioned between the table and the drill, prevents the later one from slipping and turning.
Electrical setup
After mechanical problem was sorted out it was time to see how to drive this little motor. It has a constant current draw under load of 3-4A but draws 7-10 Amperes on startup.
I've tried using laptop power supplies (12-15-19V) rated at 3-5A but they went immediately in protection mode. I've also used small (1-2Ah) UPS batteries as a buffer but they are not able to sustain the current requirements, requiring usage in short bursts.
So I welcome our new friend, the RC LiPo battery - in addition to being a constant helper in starting my scooter it also easily provides 40A. The battery pictured below is not fit for RC use - because it sustained multiple crashes and one complete discharge - but it does the job fine in other fields. Important to note that it's a 3S configuration (3x4.2V). A 4S would also work, even better.
I managed to scrounge a 3-pole switch from my junk box, rated at only 1A - so about 10 times less than what it needs to be. Everything is connected with 1.5mm^2 wires (AWG16), which should be fine, according to this chart:
http://www.wecoconnectors.com/data_source/fichiers/wire_size_specifications.pdf
Ever since The Ben Heck Show I've become a supported of hot glue and cardboard for prototyping and the current project is no exception.

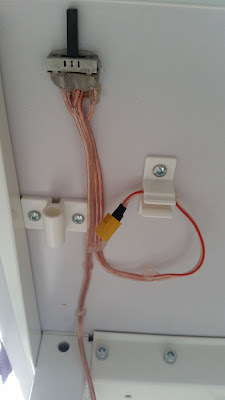

The switch was insulated with hot glue, it was fixed to the table with hot glue while the wires were also held with that.For all these "home improvement ideas" I like having a DIY look as opposed to a clean one.
Obviously this is a semi-temporary setup until I'm able to verify that everything is running fine in the long term.
Supply and battery life
It looks odd having such a small LiPo cell powering a big table and you might be wondering how long would that be able to last.I intended floating the cells at 12V, to keep them constantly charged, but as far as I've read LiPo chemistry does not like floating/trickle charge. Nevertheless, if you really intend doing this, a 12V (regulated!) 0.25A up to 1.5A supply would suffice. Smaller is safer.
I've raised and lowered the table several times and the battery voltage did not change much. I would expect that out of a charged 1.8Ah 3S LiPo I would get at least 40 actuations - one month of battery life.
Math
Current draw while lowering the table is <0.5A and takes ~10s, so we can ignore that. While raising it, it's probably within 3-12A for ~10s, let's say an average of 10A. One full up-down movement (to my preferred positions) would then take 10A*10s/3600 = 0.028Ah.1.8Ah would then mean 64 actuations, so 3 per day over the course of a month. Obviously this is highly simplified.
Safety and finishing touches
The switch will have to be replaced with a higher rated one - 20A to be on the safe side.
There should be an inline fuse on the wires coming from the battery - 20A.
The drill assembly needs to be affixed with a metal bracket.
The wires need to be routed in a nicer way so they are less conspicuous.
Under no circumstances should the battery be connected directly to the "circuit". In case of short circuit it should allow a fast way of disconnecting it, either by yanking the battery connector or the fuse out. It will also provide a way to nicely charge and balance the LiPo cells.
It makes a really loud noise, not sure exactly why. It either needs dampeners in the areas the drill connects to the table or a different motor.
Update: the engine was mounted to a bracket, surrounded by circular foam. This makes it a bit less louder.A possible improvement would be a flexible coupling as used in 3D printers, available on dx.com:
Update:
Two short videos showing the operation and noise levels - measured at 62-65dB with an SPL meter:
Update 2016.07.26
The setup has been in use for almost a year and hasn't failed. I was afraid the switch I used (rated for 250mA) would weld because of the high currents but that hasn't happened.
For noise reduction I used a flexible coupling at first (from AliExpress) but it proved too weak for the torque. A 3D printed part in PLA was also too weak. The final solution was to use a flexible 1/4" coupling similar to this: http://www.amazon.com/Piece-Flexible-Extension-Bar-Set/dp/B01EVT36YM/ref=sr_1_3?ie=UTF8&qid=1469567513&sr=8-3&keywords=flexible+1+4+extension
The hex/allen extension that was cut was force-fitted into the flexible coupling mother end, the driver (father) end was just tightened into the drill chuck.
I have found an automotive-style window switch that should work fine for this application:
https://www.pollin.de/shop/dt/NjMzOTc1OTk-/Bauelemente_Bauteile/Mechanische_Bauelemente/Schalter_Taster/KFZ_Fensterhebertaster.html
Probably identical to this: http://www.amazon.com/uxcell%C2%AE-Vehicle-Plastic-Momentary-Window/dp/B00H8VK4KK
Hi, please excuse the newbie request but can you provide a wiring diagram from motor, to switch, to battery?
ReplyDeleteHi, it depends on the switch, I used a 2P3T switch (search Google for it, double pole triple throw) or 'DPDT with center-off'.
DeleteExample: http://www.robotroom.com/DPDT-Bidirectional-Motor-Switch.html
http://www.eleinmec.com/article.asp?12
Make sure to measure the switch first (or know the pinout) otherwise you might short out the battery.
Very helpful, thanks!
DeleteThanks for this: I had wondered about this hack.
ReplyDeleteYou mentioned there should be an inline fuse on the wires coming from the battery, however I haven't been able to find much info on that. Can you provide more details?
ReplyDeleteI haven't added it in my project yet, but I highly suggest that everyone attempting this does it. This is because there are no limit switches nor shortcircuit protection.
DeleteThe easiest way: buy a car fuse holder (1~2$) and a 25A matching fuse. Cut the positive wire going to the battery connector and insert the fuse holder in that spot. The positive wire should then run through the fuse (hence: inline).
Hi!! Cool project. How do you come up with 2Nm for the needed torque? I'm confused on how the math would work there.. and what voltage of drill did you use or does that matter?
ReplyDeleteHi, thank you. I used a kitchen scale on the rotating arm that came with the table and measured the force at different heights. I also have a luggage scale, but it's less sensitive. I don't remember exactly but I think the pivot length is 25cm and the required force was 700g, tangent to the rotating plane.
DeleteHowever, this force varied widely depending on where the table was positioned - higher positions require almost double the force to raise the table while lowering the table requires almost zero torque. 2Nm was a good ballpark figure to allow some headroom (stuff sitting on table).
The drill is 14.4V I think, but it wouldn't matter, most of them have at least 10Nm. The 7.2-9V ones are usually made only for screwing (not drilling), they have limited torque.
Hello.
ReplyDeleteI just bought this desk. Before I took it out of the package I was curious if the bottom portion with the stand would work with a different table top than the one ikea pairs with it?
For example, if I found a wood desk/table top would easily attach to the legs and raising/lowering device?
You can, but it needs to be at least "120x70cm (47.24x27.44”)" otherwise there would be some heavy modifications involved.
Deletethank you!!
Deletehttp://www.ikea.com/us/en/catalog/products/50106773/
Deletehttp://www.ikea.com/us/en/catalog/products/20240626/#/20240626
Either of these do the trick? OR too small? Thanks!
Either of these do the trick? or Too small? thanks
I should add. I am not interested in making it automatic. Just wanted to put a wood top on there to spruce it up.
Deletethanks
The first one should be fine.
DeleteThe second one is too small, it needs to have at least 27" depth.
The first one is a bit too wide but it will work just fine. You can always go larger with this system but not smaller than 47x27" in either direction.
Would adding a wooden tabletop like the one david is suggesting be too heavy for the mechanism to lift the table? Ikea says it's got a max load of 110lbs. A 60-70lb tabletop with a bunch of stuff on it might push it to it's limits there no?
DeleteAnd thanks so much for this! Gonna motorize the crap out of mine.
My tabletop is pretty light, I think around 10lbs plus another 20lbs or so on top of it. The main issue will probably not be the torque of the motor but the mounting. At those force the motor will try to twist itself out of the mount or strip the drive shaft. Perhaps a lower rev actuation would be better than the fast one provided by a normal drill.
DeleteIn response to your YouTube comment the table is still strong after one year, haven't had any issues yet except the noise.
Thanks for the speedy reply. I'm a little new to this stuff, what type of motor would be a good alternative?
DeleteMy estimate (after some measurements and calculations) was something that has at least 2Nm of torque, that's 283 oz-in. You can search for 12V gear motor in conjunction with robotics. Also the ones used in automotive (seat motor, windshield wiper) should have enough torque. The drills unfortunately have a too large body and there is <1" of clearance from the top of the table to the drive.
DeleteDo you used any gears for the motor ?
ReplyDeleteThe drill motor already has a gearbox.
DeleteMahlzeit, hab festgestellt, der Ikea Fixa 3,6 volt tuts auch vollkommen. Aufschrauben, kabel für den Schalter verlängern und an die Tischkante wurschteln: Sitzt! wenn man keinen alten Akkuschrauber rumfliegen hat bekommt man für 9 Euro fast alles was man braucht.
ReplyDeleteGlad it worked, good to know that the Ikea Fixa is a good fit.
DeleteKannst du mir mal sagen, wie du das gemacht hast? Ich hab das jetzt mit dem Fixa 3,6V und mit dem Fixa 7,2V versucht und in beiden Fällen fährt der Tisch zwar runter aber nicht mehr hoch. Muss man da dann irgendwie einen Sicherheitsmechnismus umgehen oder warum funktioniert das bei uns nicht? Selbst der Fixa 3,6V hat schon eine Drehmoment > 2 NM...
DeleteCan u tell me, how you done it? I've tried it now with both the Fixa c3,6 and Fixa 7,2V and in both cases the table is only able to go down electrically but it does not go up anymore. Do I have to circumvent some sort of security mechanism or something, or why doesn't it work for us? Even the Fixa 3,6V has a torque > 2 NM...
Have you tried lifting the table with one hand while the screwdriver also tries to lift it? ("help it").
DeleteRegarding torque, not sure how they measure it. I made my measurements with a digital scale and a ruler, but with an empty table.
Also check that the legs are straight.
Yes, I tried but had no luck. The problem is, that after a short distance the drill stops probably because there is to much strain on the motor and I have to wait a couple of seconds before the drill starts working again
DeleteIt might be the torque, but I doubt it. I think that the driving shaft is not straight, so a lot of the energy is wasted.
DeleteToo much noise, i had to revert back to the manual crank.
ReplyDeleteI think that the only solution is to buy a proper standing desk
can I use an 18v drill with its included 1.5Ah Battery? will that let me hook up everything the same way safely, with the 20Amp switch and 20amp fuse? I have very limited experience with electronics :/
ReplyDeleteYes, should work fine, but it would be loud (as mine). I even omitted the fuse as the drill and battery would likely limit the current anyway and it doesn't run unattended.
DeleteThank you for sharing about this project, it inspired me on doing a similar one with additional features (less noise, and auto raise / auto lower features. If anyone is interested, I wrote detailed steps on how to do it on my blog:
ReplyDeletehttp://cesarmoya.com/blog/motorizing-standup-desk/
That's a really cool project, thanks for sharing it!
